VTR Cylinder Head Porting

VTR offers head porting in 4 different packages. Each package includes:

  • Disassemble & clean heads

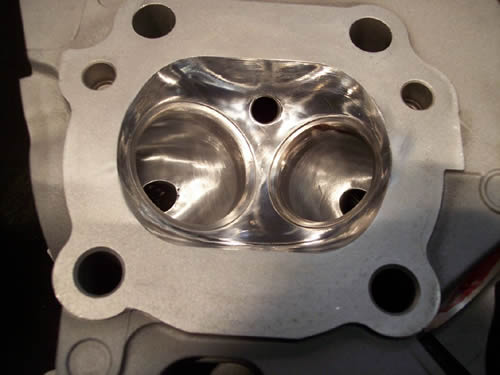

  • Re-conture ports and radius valve seats
  • Re-machine guides and Sunnen hone to fit

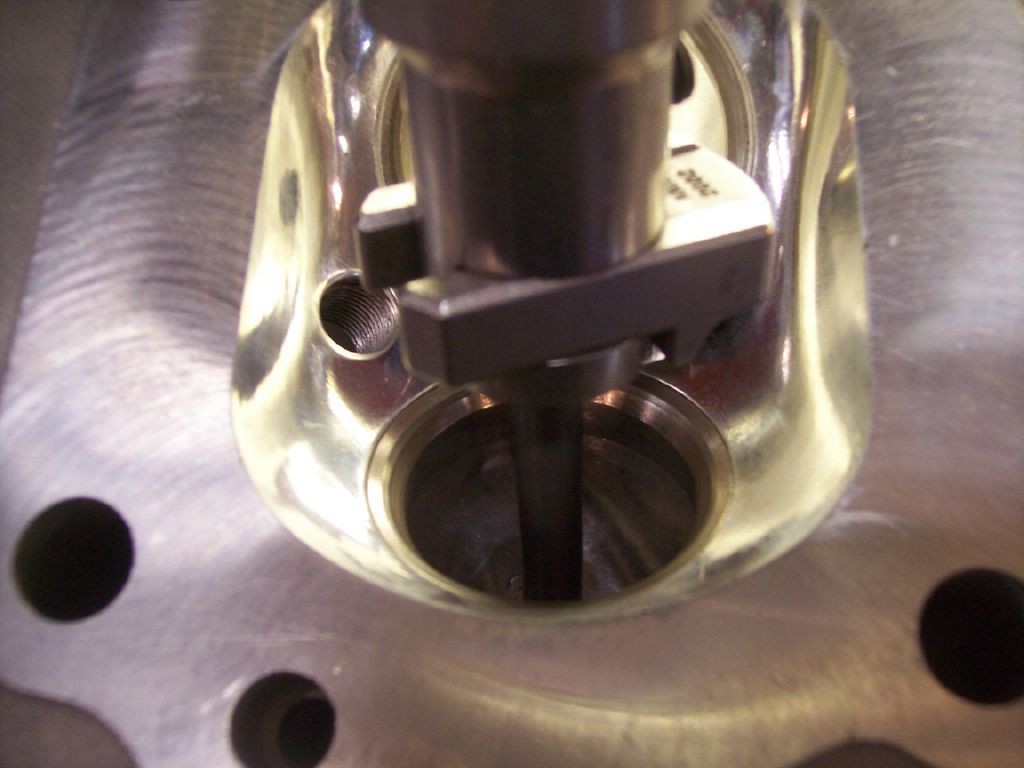

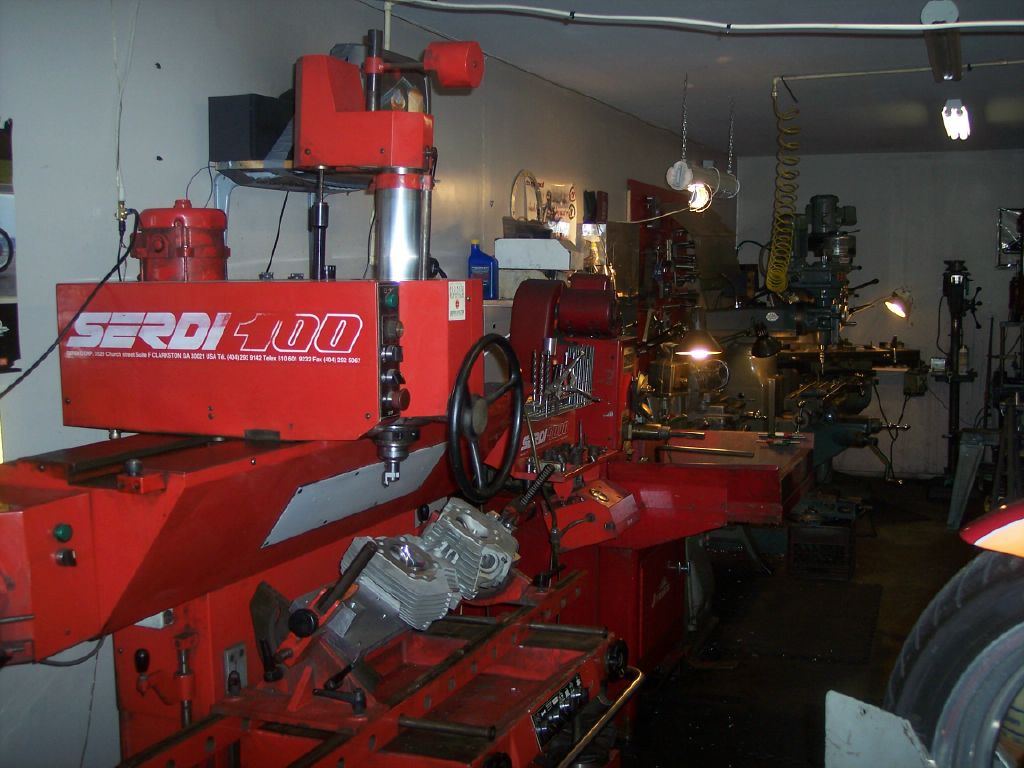

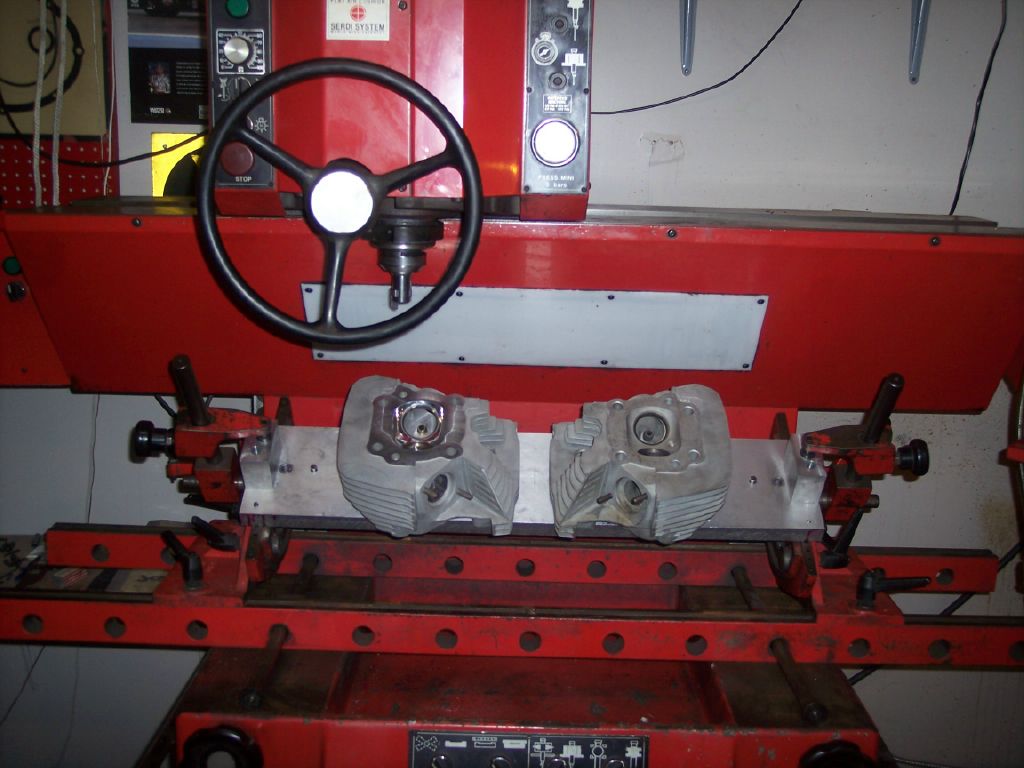

  • Finish with SEDRI valve job, fully radiused int. & exaust seats

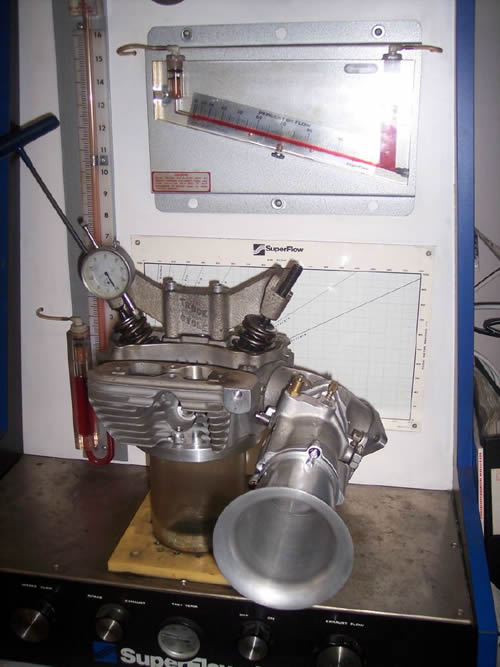

  • Flowtested on our Superflow 300 flowbench and come with flowchart of your heads (Our heads are tested thru a manifold NOT a velocity stack stuck on the intake port, like some other ported heads. This gives inflated and inaccurate flow #'s)
  • EACH STAGE OF PORTING IS AVALIABLE IN A TOURING OR HOTROD VERSION (every set of heads is ported to your exact build,we have no heads done,sitting on shelves)

Evolution & Twin Cam Heads



Serdi PRO STREET PORT





Open & blend seats for 1.900 intake & 1.625 exhaust valves, conture bowls and finish with a fully radiused cut on both seats,opening & D shaping of EX port (includes 1.900/1.630 or 1.575 valves). Flows 255+/220+ @ 28" (we offer this in a "touring" or "hotrod" version) This headwork will flow more than out of the box Screamin Eagle heads.setting CC amount for desired compression is included,inc. valves & seals $475.00

Stage II 110: Porting and flowing of SE 110 heads, taper and replace valve guides,install up to 2.150" intake valves,SERDI fully radiused valve job. 310+cfm @ 28",inc guides,valves & seals $695.00

Stage II: replacement of guides,total recounturing of ports 1.900 intake and up to a 1.630 exhaust valves.SERDI seat work.265 cfm @ 28",inc guides,valves & seals $695.00


Stage III:



M8 4 valve

Same as I and II with the addition of replacing intake seats with over-size units. 1.940 to 2.0 intake and up to a 1.630 exhaust. set up for big manifold. 275 + @cfm @ 28",inc. guides valves & seals
fully re-conturing of ports,high flow valves,SERDI seat work,larger valves avaliable depending on build



$895.00



795.00

S&S or any aftermarket heads larger valves avaliable,fully recontured ports & SERDI radiused valve job,AV&V guides inc. in price 695.00
    $695.00
IF SPRINGS ARE NEEDED ON ANY HEADWORK,THEY ARE NOT INCLUDED
